Water Chiller YAG Jewelry Laser Welding Machine 200W For Ring Bangle Bracelet Platinum

Place of Origin China
Brand Name DP LASER
Certification CE SGS FDA TUV ROHS
Model Number Laser Welding Machine
Minimum Order Quantity 1 Set
Price Please contact us
Packaging Details Wooden boxes that meet international export standards
Delivery Time 7-15 Work Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 300 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Power 200W Laser Type Nd:YAG
Condition New Dimensions 1080*590*1230mm
Application Jewelry Welding Products Core Components YAG Power
Pulse Width 0.1-20ms Focal Spot Diameter 0.3-2.5 Mm
Power Supply 110V/220V 50HZ After-sales Service Provided Overseas Engineers Provide Door-to-door Service
High Light

FDA Jewelry Laser Welding Machine

,

Jewelry Laser Welding Machine 200W

,

bracelet laser welding machine 200W

Leave a Message
Product Description

200W Built-In Water Chiller YAG Jewelry Laser Welding Machine For Ring Bangle Bracelet Platinum



Basic introduction

The jewelry laser welding machine uses high-energy laser pulses to locally heat and weld materials in a small area. It can weld different materials together, and has the advantages of corrosion resistance, high temperature resistance, high photoelectric conversion efficiency, and long life. The machine is loaded with a high-definition microscope observation system and a high-definition LED screen to ensure the aesthetics of the welding effect; the whole machine is ergonomically designed to work for a long time without fatigue. Wait.



Features
1. Compact design, saving space in the workshop or studio, and convenient transportation.


2. The microscope is displayed synchronously with the CCD, which is very convenient for observation.


3. The core components of the machine IGBT are imported from Germany.


4. The microscope adopts the best brand in China, which is 1.5 times the cost of other ordinary microscopes.


5.Color touch screen, friendly human-computer interface.



Application industry

Jewelry welding machine is specially designed for jewelry and electronic industries, and is mostly used in jewelry, electronic components, communications, handicrafts and other industries. It can repair and weld various metals and alloys such as stainless steel, copper, gold, silver, K gold, etc. Including: rings, earrings, bracelets, necklaces, tie clips, cuffs and other jewelry and metal accessories.

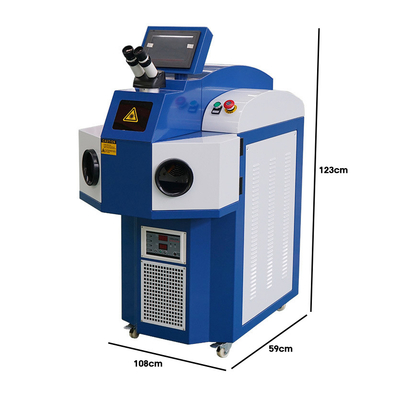

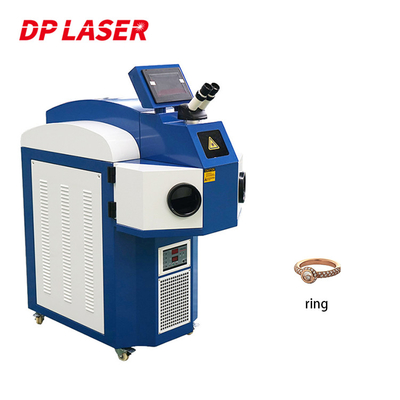

Water Chiller YAG Jewelry Laser Welding Machine 200W For Ring Bangle Bracelet Platinum 0Water Chiller YAG Jewelry Laser Welding Machine 200W For Ring Bangle Bracelet Platinum 1

Model DPH-200SS-YAG-W
Laser wavelength 1064nm
Condenser reflector Imported ceramic condensing cavity
Maximum laser power 200W
Voltage 380V three-phase / 220V single-phase (Voltage transformer is needed if for 110v)
Pulse width 0-20ms
Laser frequency 0-50Hz
Spot adjustment range 0.3-2.5mm
Cooling system Built-in water chiller 1P
Rated power 6.5KW
Power demand Standard three-phase 380V±5%/50Hz/20A Optional single-phase 220V
Packaging size(mm) 1080*590*1230mm
Gross weight(kg) 180
Usage environment temperature 10-30℃

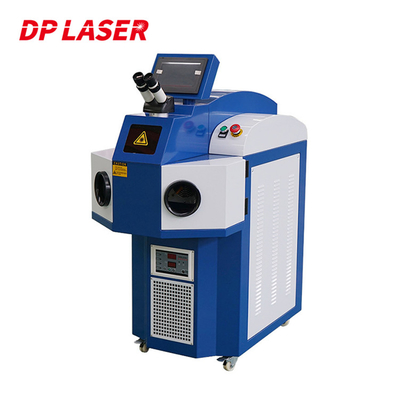

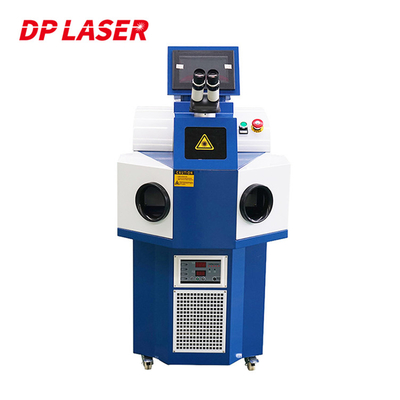

Water Chiller YAG Jewelry Laser Welding Machine 200W For Ring Bangle Bracelet Platinum 2Water Chiller YAG Jewelry Laser Welding Machine 200W For Ring Bangle Bracelet Platinum 3

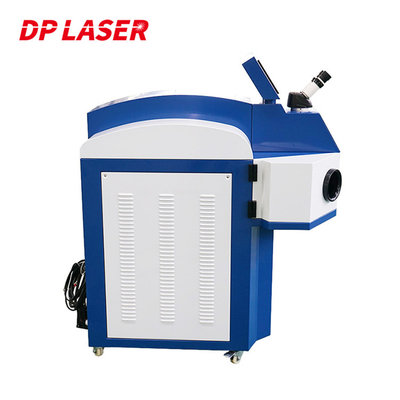

Water Chiller YAG Jewelry Laser Welding Machine 200W For Ring Bangle Bracelet Platinum 4
