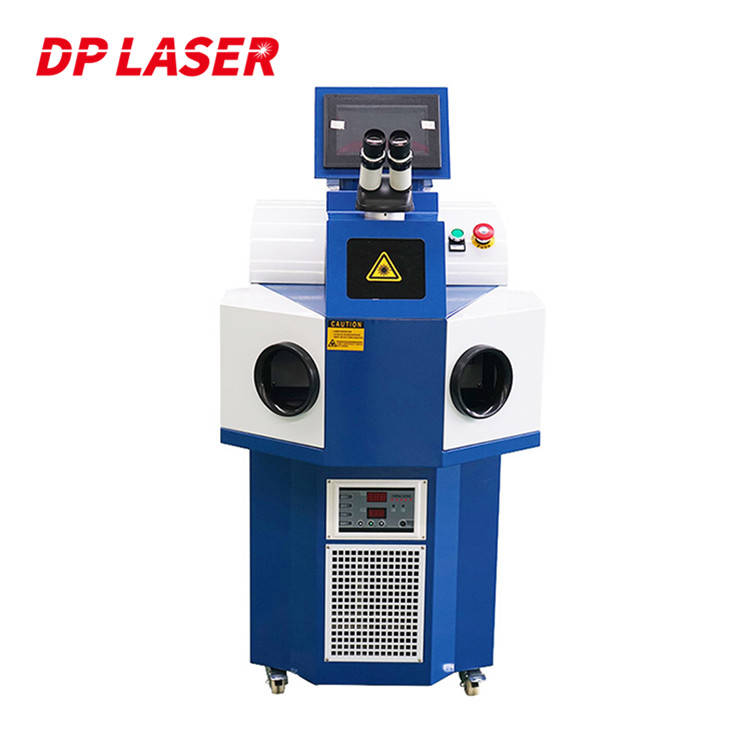

200W YAG Jewelry Welding Machine For Ring Bangle Bracelet Platinum

Place of Origin China
Brand Name DP LASER
Certification CE SGS FDA TUV ROHS
Model Number Laser Welding Machine
Minimum Order Quantity 1 Set
Price Please contact us
Packaging Details Wooden boxes that meet international export standards
Delivery Time 7-15 Work Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 300 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Laser Power 200W Laser Type Nd:YAG
Condition New Dimensions 1080*590*1230mm
Application Jewelry Welding Products Core Components YAG Power
Pulse Width 0.1-20ms Focal Spot Diameter 0.3-2.5 Mm
Power Supply 110V/220V 50HZ Laser Wavelength 1064nm
Rated Power 6.5KW
High Light

YAG Jewelry Welding Machine


Ring Bangle Jewelry Welding Machine


200W YAG Jewelry Laser Welder

Leave a Message
Product Description

200W YAG Jewelry Welding Machine For Ring Bangle Bracelet Platinum


200W YAG Jewelry Laser Welding Machine For Ring Bangle Bracelet Platinum


Basic introduction

YAG jewelry laser welding machine is a specialized tool designed for welding jewelry using a YAG (yttrium aluminum garnet) laser. This type of welding machine is highly precise, capable of welding delicate and small parts of jewelry without causing damage to the surrounding areas. The laser beam generated by the machine is focused on the jewelry pieces to be welded, causing the metal to melt and then solidify as it cools, resulting in a strong and durable bond. YAG jewelry laser welding machines are typically compact in size and are equipped with high-precision positioning systems to ensure accurate welding. They are commonly used in the jewelry industry for welding precious metals such as gold, silver, and platinum.

The jewelry laser welding machine uses high-energy laser pulses to locally heat and weld materials in a small area. It can weld different materials together, and has the advantages of corrosion resistance, high temperature resistance, high photoelectric conversion efficiency, and long life. The machine is loaded with a high-definition microscope observation system and a high-definition LED screen to ensure the aesthetics of the welding effect; the whole machine is ergonomically designed to work for a long time without fatigue. Wait.



Model DPH-200SS-YAG-W
Laser wavelength 1064nm
Condenser reflector Imported ceramic condensing cavity
Maximum laser power 200W
Voltage 380V three-phase / 220V single-phase (Voltage transformer is needed if for 110v)
Pulse width 0-20ms
Laser frequency 0-50Hz
Spot adjustment range 0.3-2.5mm
Cooling system Built-in water chiller 1P
Rated power 6.5KW
Power demand Standard three-phase 380V±5%/50Hz/20A Optional single-phase 220V
Packaging size(mm) 1080*590*1230mm
Gross weight(kg) 180
Usage environment temperature 10-30℃



This laser welding machine is designed to be compact, saving space in workshops or studios and making it easy to transport.

The machine features a synchronous display of the microscope and CCD, making it very convenient for observation.

The core components of the machine, specifically the IGBT, are imported from Germany to ensure high quality and reliability.

The microscope used in this machine is of the highest quality, from the best brand in China, and is 1.5 times the cost of other ordinary microscopes.

The machine features a color touch screen with a friendly human-computer interface, making it easy to use and operate.


Application industry

Jewelry welding machine is specially designed for jewelry and electronic industries, and is mostly used in jewelry, electronic components, communications, handicrafts and other industries. It can repair and weld various metals and alloys such as stainless steel, copper, gold, silver, K gold, etc. Including: rings, earrings, bracelets, necklaces, tie clips, cuffs and other jewelry and metal accessories.
