FSCUT 1000 Cypcut Laser Controller System For Fiber Laser Cutting Machine
| Place of Origin | China |
|---|---|
| Brand Name | DP LASER |
| Certification | CE SGS FDA TUV ROHS |
| Model Number | Laser Control System |
| Minimum Order Quantity | 1 Set |
| Price | Please contact us |
| Packaging Details | Wooden boxes that meet international export standards |
| Delivery Time | 7-15 Work Days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 300 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Brand | FSCUT | Software | Cypcut |
|---|---|---|---|
| Product Name | Cypcut Laser Control | Condition | New |
| Application | Metals Cutting | Spare Parts Type | Laser Control System |
| Package | Carton | Used For | Fiber Laser Cutting Machine |
| Weight (KG) | 10 KG | After-sales Service | Overseas Engineers Provide Door-to-door Service |
| High Light | FSCUT Laser Control System,FSCUT 1000 Laser Control System,FSCUT 1000 |
||
Product Description

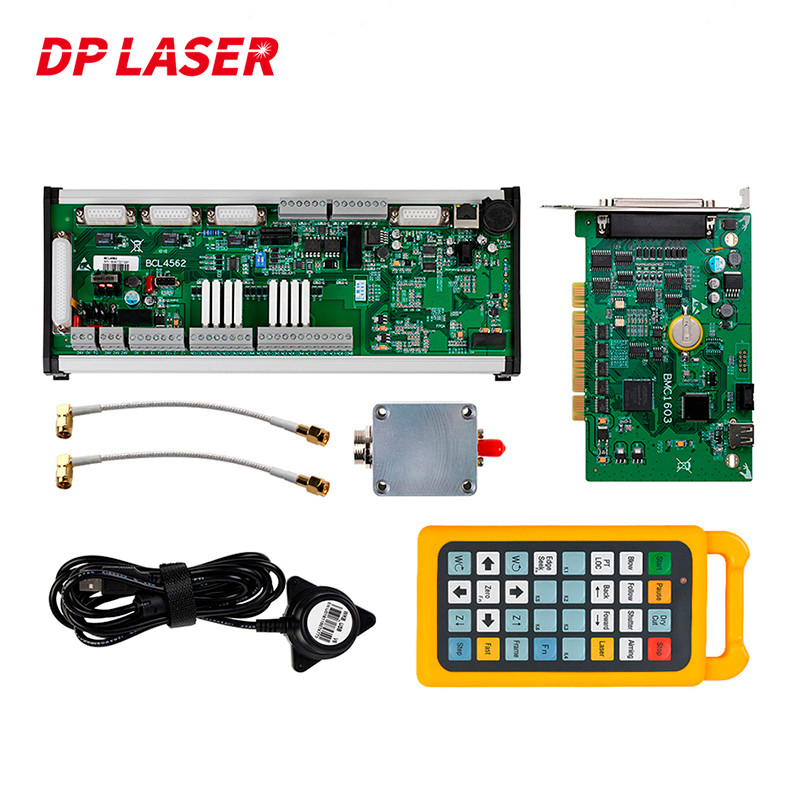

FSCUT 1000 Cypcut Fiber Laser Cutting Machine Laser Controller System
Basic introduction
The FSCUT1000S system is a set of low-cost fiber laser cutting solutions tailored on the FSCUT2000C medium-power laser cutting system. The system combines the motion control card and the capacitor height controller into one, and is a special laser cutting system with high cost performance.
Feature
1.Craft
Supports up to two levels of perforation.
Only supports the communication of domestic lasers such as Raycus, Maxphotonics and Feibo.
Support flying cutting, leapfrog.
Capacitive edge finding is not supported; the expansion board can support electric focus adjustment and double exchange worktables; support simple layout.
Advanced processes such as cooling spots, sharp corners, and release corners are not supported.
2.Control
Track accuracy 0.05mm, positioning accuracy 0.01mm.
Maximum cutting speed 100m/min, maximum idle speed 100m/min.
Maximum acceleration 1G.
Does not support dual-drive error alarm and pitch compensation functions.
The origin signal is not supported, only the limit signal is sampled when returning to the origin.
Applicable Industries
It is suitable for low-power fiber laser cutting machines within 1500W, and is widely used in laser processing equipment for thin metals such as the advertising industry.
 |
| FSCUT 1000 |
Specification
| Adaptation software | CypOne Laser Cutting Software |

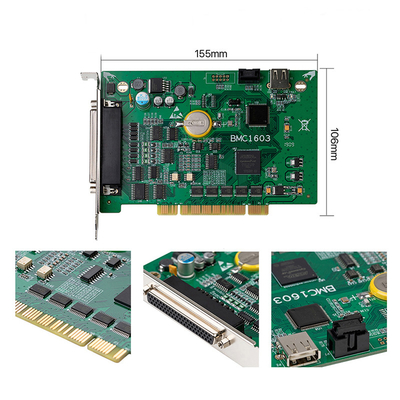

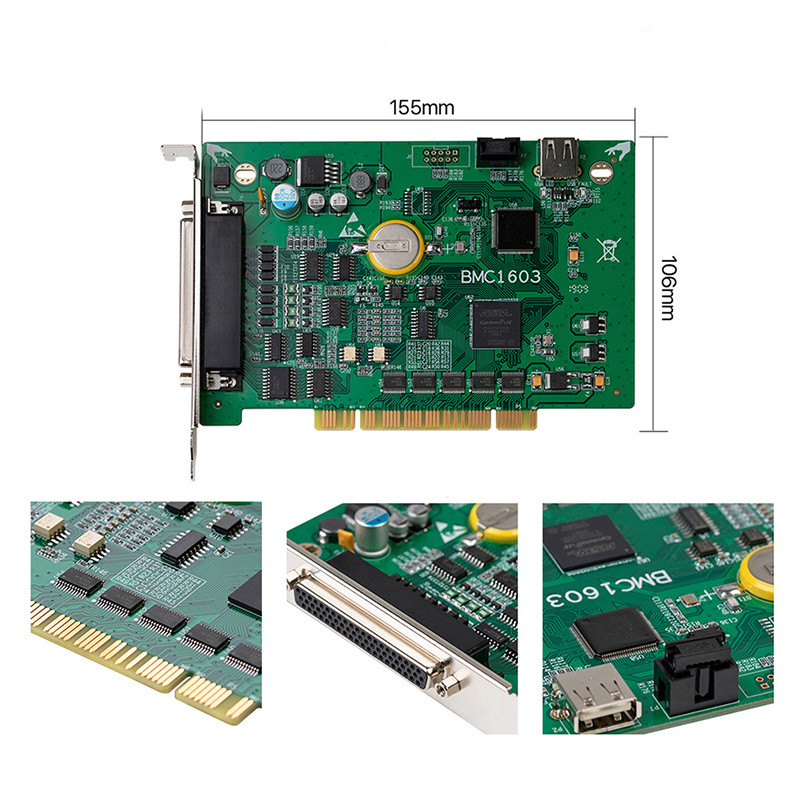

| Control card | BMC1603 |
| Interface Type | 32-bit PCI bus, 132MB/s |

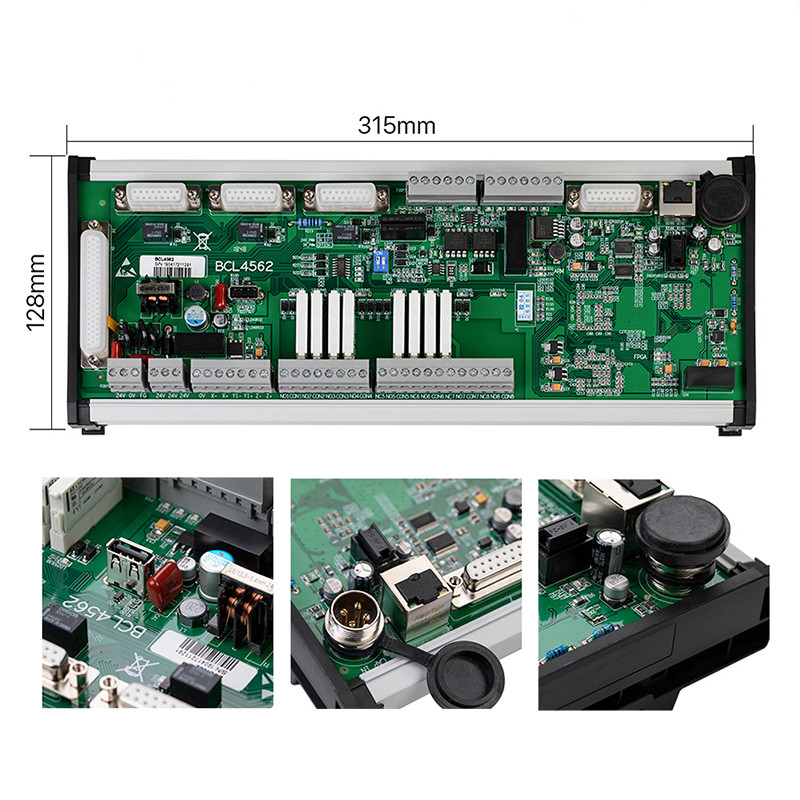

| Terminal board | BCL4562 |
| Power Requirements | 24V DC/2A |
| Motor control signal | X/Y1/Y2 axis pulse output, maximum frequency 3MHz Z axis analog output, -10~+10V X, Y1, Z axis with encoder input interface, the highest sampling frequency 10MHz |
| Dedicated output | 2-channel DA: 0~10V, 50mA 1 channel PWM: 5V/24V optional, accuracy 5KHz (0.1%) |
| Dedicated input | 6-way limit: X/Y1/Z 3-axis positive and negative limit |
| Universal input | 6 channels: active low, support normally open, normally closed |
| Universal output | 8 channels: relay output, 30V DC/5A |
| Working environment | Temperature: 0~55℃ Humidity 5%~95% (non-condensing) |
