FSCUT 3000S Cypcut Laser Control System For Fiber Laser Cutting Machine
| Place of Origin | China |
|---|---|
| Brand Name | DP LASER |
| Certification | CE SGS FDA TUV ROHS |
| Model Number | Laser Control System |
| Minimum Order Quantity | 1 Set |
| Price | Please contact us |
| Packaging Details | Wooden boxes that meet international export standards |
| Delivery Time | 7-15 Work Days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 300 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Brand | FSCUT | Software | Cypcut |
|---|---|---|---|
| Product Name | Cypcut Laser Control | Package | Carton |
| Condition | New | Application | Metals Cutting |
| Used For | Fiber Laser Cutting Machine | Machinery Test Report | Provided |
| Video Outgoing-inspection | Provided | After-sales Service | Overseas Engineers Provide Door-to-door Service |
| High Light | FSCUT 3000S Laser Control System,Cypcut Laser Control System |
||
Product Description
FSCUT 3000S Cypcut Fiber Laser Cutting Machine Fiber Laser Controller System
Basic introduction
FSCUT3000S is a control system developed for pipe processing. It supports high-precision and high-efficiency cutting of square, round, racetrack and oval drawing pipes, as well as angle steel and channel steel. It is an upgraded version of FSCUT3000.
Feature
1. Craft
Support real-time deviation compensation of the tube core, reduce the clamping requirements of the tube, and greatly improve the perforation accuracy.
Support angle steel, channel steel cutting.
Support to set up a separate corner process to improve the cutting quality of pipe corners.
Support automatic loading and unloading and cyclic processing, support standard automatic feeding action.
Compatible with all functions of FSCUT2000 laser cutting system.
2. Control
Open-loop control system, using Bochu fifth-generation motion control algorithm.
Track accuracy 0.02mm, positioning accuracy 0.001mm, repeat positioning accuracy 0.003mm.
Support real-time feedback of the encoder, and add error measurement tools to obtain the best motion parameters of the machine tool.
Applicable Industries
It is suitable for special tube cutting machine or tube-sheet all-in-one machine. Widely used in furniture, display racks, construction, sports equipment and other industries.
 |
| FSCUT 3000S |
Specification
| Adaptation software | TubePro tube cutting software/CypCut plane cutting software |

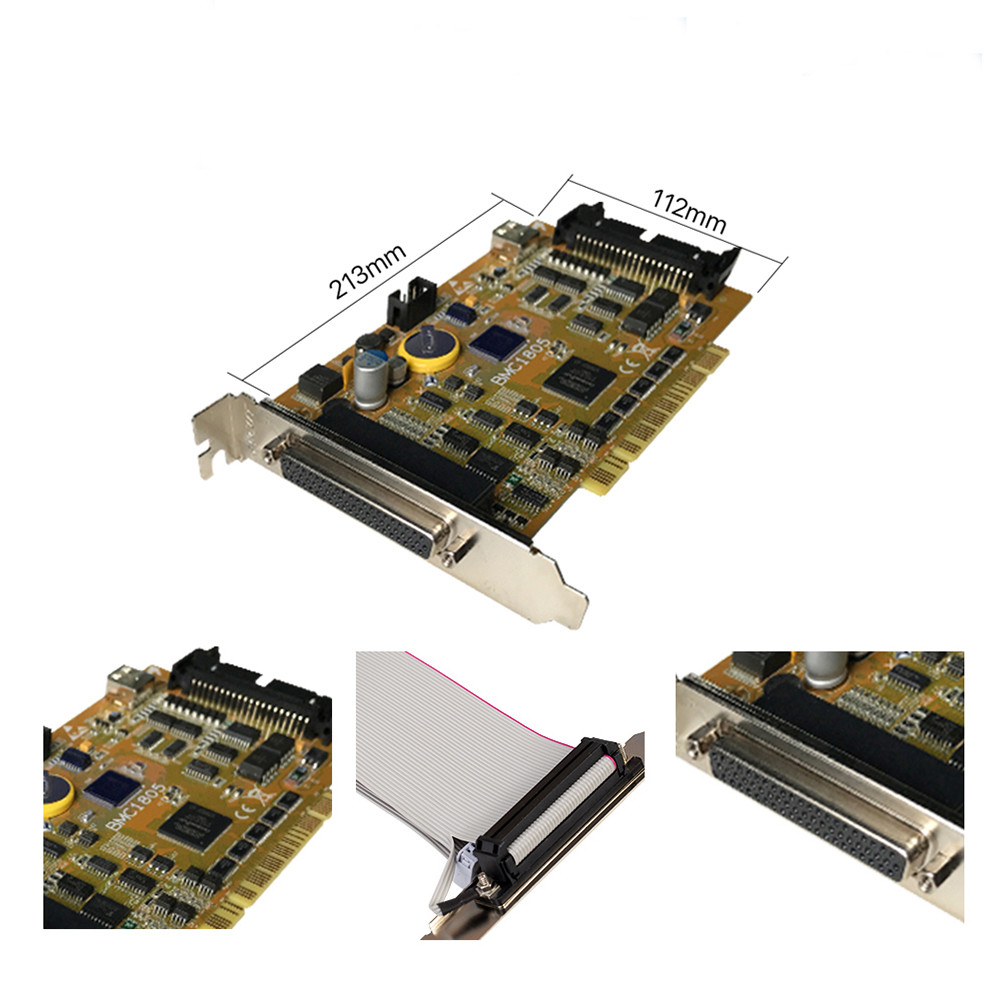

| Control card | BMC1805 |
| PCI type | 32-bit PCI bus, 132MB/s |

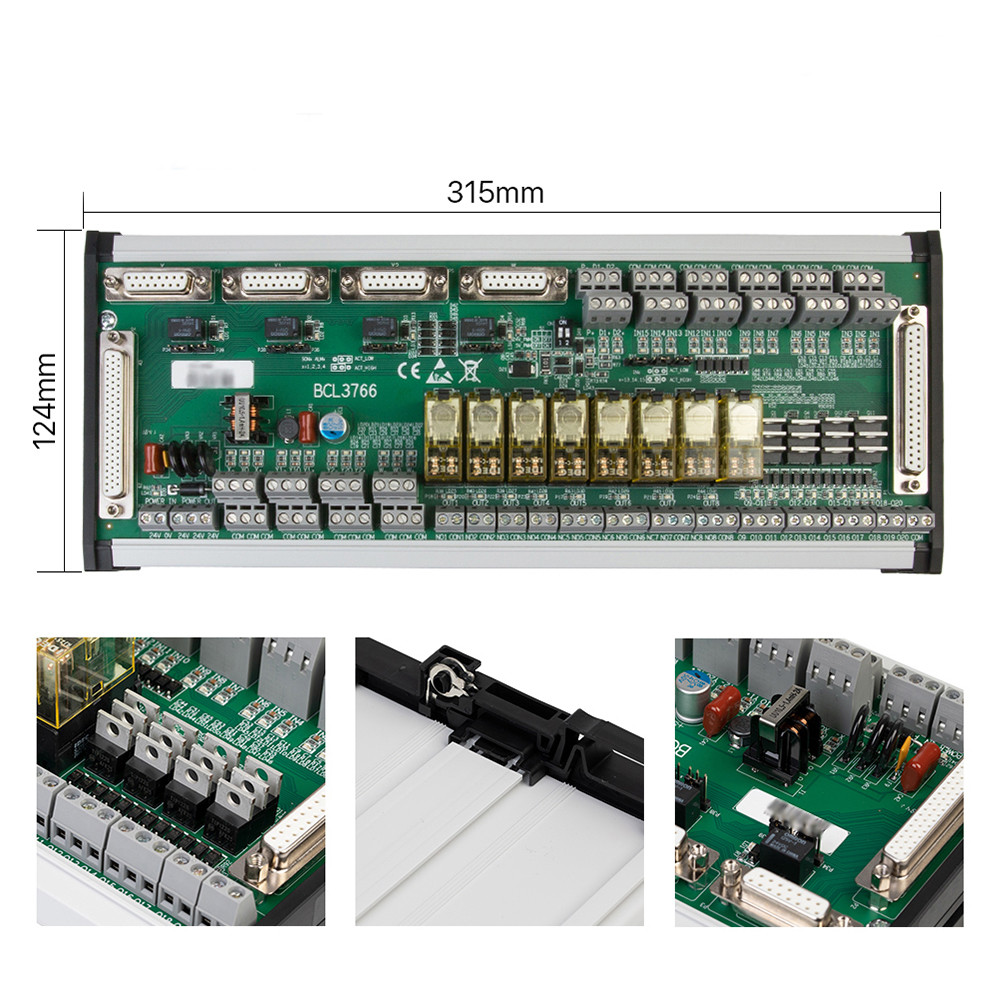

| Terminal board | BCL3766 |
| Power Requirements | 24V DC/2A |
| Motor control signal | X/Y1/Y2/W axis pulse output, maximum frequency 3MHz X/Y1/Y2 axis with encoder input interface, the highest sampling frequency is 10MHz The W axis can control the rotary axis or the motorized focusing module |
| Dedicated output | 2-channel DA: 0~10V, 50mA 1 channel PWM: 5V/24V optional, accuracy 5KHz (0.1%) |
| Dedicated input | 8 channels: relay output, load capacity 250V AC/5A, 30V DC/5A 12 channels: thyristor output, load capacity DC 24V/500mA |
| Universal input | 15 channels: 12 channels are active at low level, and 3 channels can be modified by jumpers to be active at high and low levels |
| Working environment | Temperature: 0~55℃ Humidity: 5%~95% (non-condensing) |
