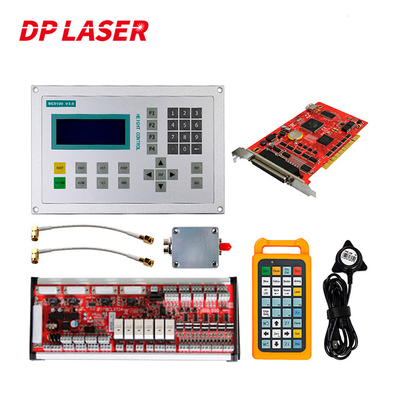

FSCUT 4000 Cypcut Fiber Laser Cutting Controller System High Speed

FSCUT 4000 Cypcut Fiber Laser Cutting Machine Fiber Laser Controller System

Basic introduction

FSCUT4000 laser cutting system is a high-speed, high-precision full-closed-loop laser control system independently developed earlier in China. Advanced functions such as automatic adjustment, cross-coupling control, intelligent perforation are supported.

Feature

1.Craft
Arbitrary combination of subsection or progressive, fixed height zoom perforation and other intelligent perforation methods.

Support pre-piercing, grouping pre-piercing, cooling point, stop light blowing, sharp corner ring cutting and other thick plate processes.

Support flying car detection, automatic adjustment, capacitive edge finding, electric focusing, exchange table, multi-task processing, automatic layout, flying cutting, leapfrog, two-dimensional code, cutting line, maintenance and other advanced functional modules.

Supports automation applications such as simple scheduling, virtual multi-station, and scanning code.

Support starting, closing and fine cutting processes.

2.Control
The closed-loop control system adopts the fourth-generation motion control algorithm of Bochu.

Control accuracy 0.005mm, actual trajectory accuracy 0.01mm, positioning accuracy 0.001mm, repeat positioning accuracy 0.002mm.

Maximum cutting speed 80m/min. Maximum air moving speed 200m/min.

Maximum acceleration 2.5G.

Allah's slave axis dual drive, each axis cross-coupling control, speed and acceleration look-ahead.

Applicable Industries

Suitable for high-precision laser processing equipment. Widely used in 3C industry, brittle and thin materials such as glass ceramics, polymer films, glasses accessories and other precision processing occasions.

FSCUT 4000

Specification
