DP Laser Control System FSCUT 2000S Cypcut CE SGS 10 KG

Place of Origin China
Brand Name DP LASER
Certification CE SGS FDA TUV ROHS
Model Number Laser Control System
Minimum Order Quantity 1 Set
Price Please contact us
Packaging Details Wooden boxes that meet international export standards
Delivery Time 7-15 Work Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 300 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand FSCUT Software Cypcut
Product Name Cypcut Laser Control Package Carton
Spare Parts Type Laser Control System Condition New
Machinery Test Report Provided Video Outgoing-inspection Provided
Weight (KG) 10 KG After-sales Service Overseas Engineers Provide Door-to-door Service
High Light

DP Laser Control System

,

Laser Control System 10KG

Leave a Message
Product Description

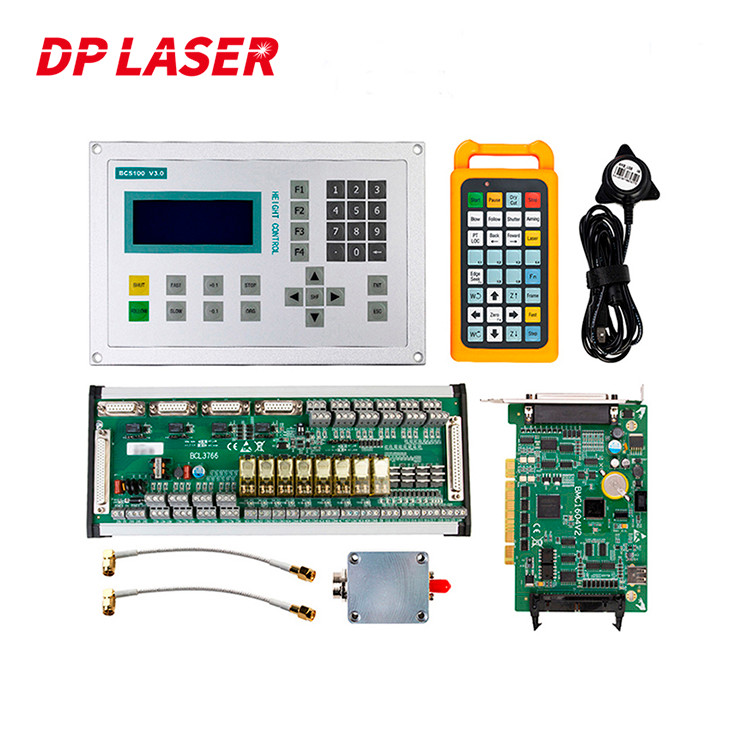

FSCUT 2000S Cypcut Fiber Laser Cutting Machine Laser Control System



Basic introduction

FSCUT2000S medium power laser cutting system is a full-featured open-loop control system specially designed for the sheet metal processing industry. It is easy to install, easy to debug, has excellent performance and complete solutions. It is an upgraded version of the FSCUT2000 system.



Feature

1. Craft
Supports five levels of perforation, any combination of segmented or progressive


Support the communication control of most mainstream lasers on the market


Support basic processes such as flying cutting, leapfrog, compensation, lead wire, micro-connection, pre-piercing, and film cutting


Support capacitor edge seeking, photoelectric edge seeking, electric focusing, double exchange table, automatic layout, tube cutting, power-off memory, QR code, cutting line, maintenance and other advanced functions


Support advanced processes such as cooling point, sharp corner girth, release corner, etc.


Support pre-opening, gas flushing


Support starting, closing and fine cutting processes


Support air-moving obstacle avoidance, leapfrog intelligent judgment


Supports automation applications such as simple scheduling, virtual multi-station, and scanning code


2. Control
Open-loop control system, the third-generation motion control algorithm of Bochu


Track accuracy 0.03mm, positioning accuracy 0.001mm, repeat positioning accuracy 0.003mm


The maximum cutting speed is 80m/min, and the maximum air moving speed is 150m/min


Maximum acceleration 1.5G


Support dual drive error detection function



Applicable Industries

Suitable for 1500W~6000W medium power fiber laser cutting machine, widely used in sheet metal parts, kitchen utensils, lamps, cabinets and other industries.

DP Laser Control System FSCUT 2000S Cypcut CE SGS 10 KG 0
FSCUT 2000S

DP Laser Control System FSCUT 2000S Cypcut CE SGS 10 KG 1

DP Laser Control System FSCUT 2000S Cypcut CE SGS 10 KG 2

DP Laser Control System FSCUT 2000S Cypcut CE SGS 10 KG 3

DP Laser Control System FSCUT 2000S Cypcut CE SGS 10 KG 4



Specification

Adaptation software CypOne Laser Cutting Software
Control card BMC2104
Interface Type PCIe bus, x16 interface, 250MB/s
Terminal board BCL3766
Power Requirements 24V DC/2A
Motor control signal X/Y1/Y2/W axis pulse output, maximum frequency 3MHz
X/Y1/Y2 axis with encoder input interface, the highest sampling frequency is 10MHz
The W axis can control the rotary axis or the motorized focusing module
Dedicated output 2-channel DA: 0~10V, 50mA
1 channel PWM: 5V/24V optional, accuracy 50KHz (0.1%)
Dedicated input 8-way limit: X/Y1/Y2/W axis positive and negative limit
4-way origin: X/Y1/Y2/W axis origin signal
Universal input 15 channels: the default low level is active, support normally open, normally closed; IN13~IN15 support high and low level switching
Universal output 8 channels: relay output, load capacity 250V AC/5A, 30V DC/5A
12 channels: thyristor output, load capacity DC 24V/500mA
Working environment Temperature: 0~55℃
Humidity 5%~95% (non-condensing)
